Stations



​Slide Sleeve Station

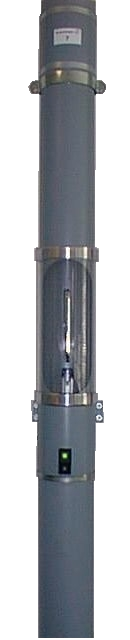

110mm PVC Slide Sleeve Station​

110mm PVC Slide Sleeve Station​

4" Steel Slide Sleeve Station​

4" Steel Slide Sleeve Station​



System Compatibility​

  • Point-to-Point

  • Semi-Automatic​

  • Full-Automatic​

Available Types​

  • Up Send/Down Receive

Available Sizes​

  • 110mm PVC

  • 4" Steel and Aluminum​

It features a higher carrier stop so that fingers cannot get hit by a carrier. Carriers arrive on a cushion of air making it a controlled soft landing.

Standard Features Include:

  • Clear Door for visible check of carrier in station

  • Built-in impact-absorbing stop for carrier delivery

  • Built-in delivery control air diode to insure an aircushioned

  • soft delivery of carriers.

  • Send and/or Receive type station

  • Floor, counter or wall mounted



Box Style Station


​110mm PVC Box Sub Station

​110mm PVC Box Sub Station

6" Steel Box Master Station​

6" Steel Box Master Station​

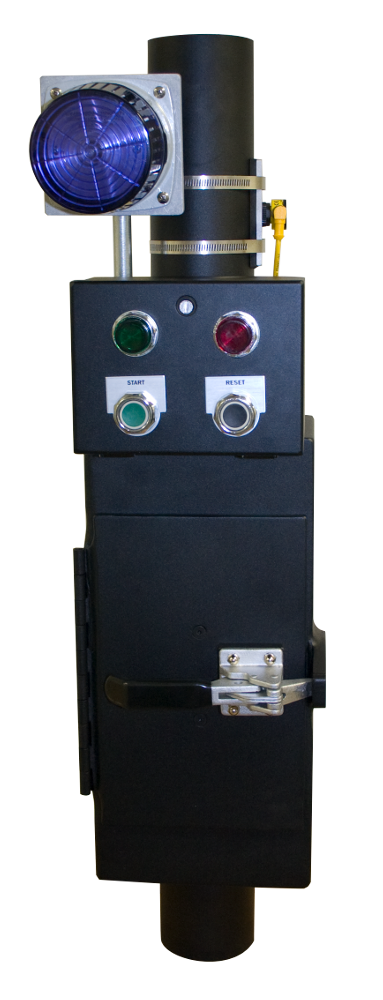

4" Heavy-duty Box Station​

4" Heavy-duty Box Station​



System Compatibility​

  • Point-to-Point

  • Semi-Automatic​

  • Full-Automatic​​

Available Types​

  • Up Send/Down Receive

  • Down Sen​d/Up Receive

Available Sizes ​

  • 110mm PVC

  • 3" Steel​

  • 4" Steel

  • 6" Steel​

  • 4"x7" Steel​

The 940 and 960 series box stations are a small compact station that fits easily into most any location. The station's design, quality components, and overall construction have proven it the most rugged and reliable station on the market today. This single tube station is designed for ease of installation, maintenance, and high reliability.

Standard Features Include:

  • Stainless Steel Hinge

  • Air-cushioned “soft” delivery

  • 12 Gauge Cold Rolled Steel Construction

  • “IN-USE”, “READY” and “CARRIER ARRIVAL” Lights

  • Low Voltage – 30 Volt DC Operation

  • Baked-On Powder Coat Finish

  • 1/2” Thick clear acrylic door​ (940 series)

  • 3/4" Thick clear acrylic door (960 series​)



Secured Room Station - Cash Handling

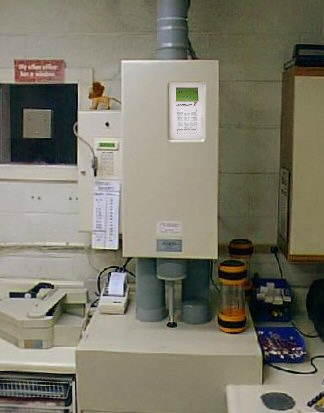

Safe Station​

Safe Station​


32 Station on two systems​

32 Station on two systems​



System Compatibility​

  • Semi-Automatic​

Available Types​

  • Up Send/Down Receive

Available Sizes ​

  • 110mm PVC

  • 4" Steel​​

​Master Station mounted on Optional safe allowing for the unattended collection of money. Features controlled soft landing and unattended night drop into safe.

Standard Features Include:

  • Air-cushioned “soft” delivery

  • Steel Construction

  • LCD display with back-light

  • 30 Volts DC Operation

  • State of the Art Microprocessor Controls

  • Non-Contact Sensors

  • Self-Adjusting Maintenance Free Gaskets



Full Automatic Station


4" Steel Recessed Full Automatic Station​

4" Steel Recessed Full Automatic Station​


​6" Steel Surface Mounted With Bin Full Automatic Station

​6" Steel Surface Mounted With Bin Full Automatic Station



System Compatibility​

  • Semi-Automatic​

  • Full-Automatic​​​

Available Types​

  • Through

  • End

Available Sizes ​

  • 4" Steel

  • 6" Steel​

The Sumetzberger DST/DRT is a small compact fully automatic station that fits easily into most any location. The station’s design, quality components, and overall construction have proven it the most rugged and reliable station on the market today. This single tube station is designed for ease of installation, in both new and existing facilities, maintenance, and high reliability. It is able to operate as an end station with arrival from above or below, or as a through station.

Standard Features Include:

  • Air-cushioned “soft” delivery

  • Steel Construction

  • LCD display with back-light

  • 30 Volts DC Operation

  • Independent SEND and RECIEVE Function

  • State of the Art Microprocessor Controls

  • Non-Contact Sensors

  • Self-Adjusting Maintenance Free Gaskets
