Controls



Point-to-Point Controller

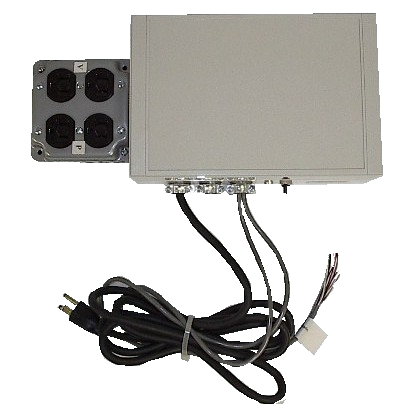

Base Point-to-Point Controller

Base Point-to-Point Controller

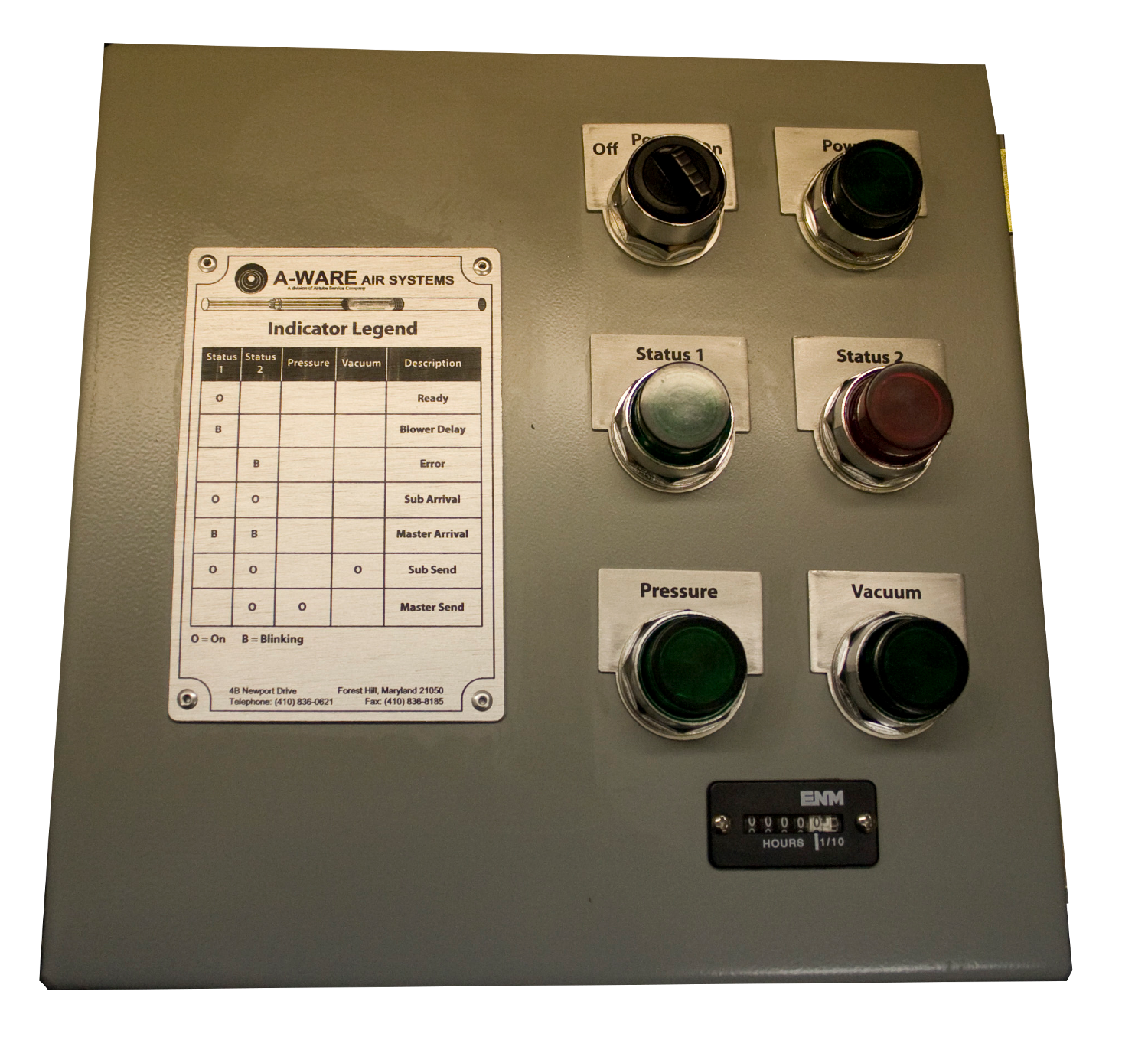

Heavy-duty Point-to-Point Controller

Heavy-duty Point-to-Point Controller

The A-Ware System Controller provides the electrical operation for a point to point system. Housed in a dust resistant enclosure, it converts 120/240 VAC power to 24 VDC. It provides the control voltage for the station controls (24 VDC) and the timed control of the blower. This unit can be used with one (1) Regenerative blower or one(1) or two(2) Mark 1-1 blowers. It is also the controller built into the HD4PV Blower Package.

Standard Features Include:

  • Timed Blower
  • Blower Test Buttons
  • Carrier Arrival Support
  • Optical Carrier Arrival Support

Options:

  • Heavy-Duty Enclosure
  • Run Time Meter

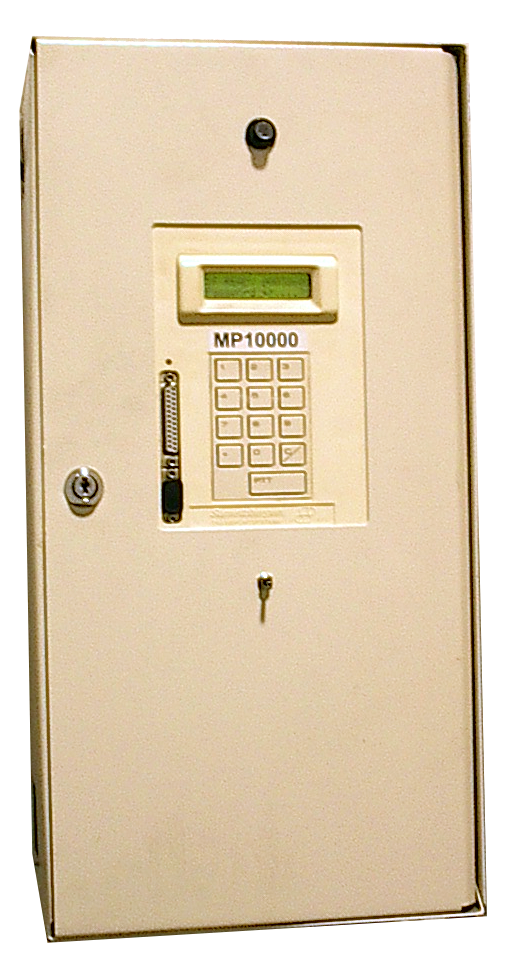

MP10000


MP10000 System Controller

MP10000 System Controller



The Sumetzberger MP10000 Central controller is the “brains” of the system. This microprocessor central controller controls, monitors and records system operations. It alerts the user of any potential problem with the system. This controller contains an integrated 30 VDC. power supply and an option phone modem. The controller contains a removable memory chip that records each action and any errors in the system for the last 200 transactions. It is upgradeable to the last 500 transactions by increase the memory chip size. This provides the system with a full audit trail.

Standard Features Include:

  • Steel Construction Housing
  • 2 line – 36 character  LCD display with back-light and at automatic stations
  • State of the Art Microprocessor Controls
  • Optional “Safe” Station Operation
  • Records last 200 transactions (upgrade-able to 500 transactions)
  • Keyed Locking Cabinet
  • Parallel Printer port
  • Serial Communications port

Options:

  • Printer
  • Integrated Modem


Power Controller


Power Controller

Power Controller



The Sumetzberger Power Controller is our most advanced controller yet. This computer based controller features full support for LAN and Internet access to system monitoring. The platform independent software integrates system editing, monitoring and transaction data in one place.

Standard Features Include:

  • Remote Online Monitoring
  • Monitoring Software Platform Independent
  • LAN and Internet Access to Monitoring Data
  • 4 line  – 16 character  LCD display with back-light at automatic stations

Options:

  • Carrier RFID Tracking
  • Statistics
  • Scheduler
